~ Fixed Head Turning: Capabilities, Tolerances and Best Use Cases ~

Jake Hughes • October 1, 2026

Key Highlights



  • Fixed head turning uses CNC lathes with a main spindle held in a fixed position during the turning process.
  • It suits short workpieces, larger diameter parts, and jobs needing stable machine tools for high-precision output.
  • Rotec Aerospace Limited in Evesham, UK, operates fixed head machines with automation for repeatable production.
  • Live tooling supports different operations such as milling, drilling, grooving, and cross drilling on complex shapes.
  • Tight tolerances depend on setup, material, tooling, and inspection, not one factor alone.
  • Fixed head turning is widely used across aerospace, motorsport, rail, oil and gas, and industrial sectors.


Introduction


Fixed head turning remains a core turning process for precision parts made on CNC lathes. It gives stable support, strong cutting performance, and a practical route to high-precision components across many industry sectors. At Rotec Aerospace Limited, this method supports both prototype work and repeat production in an automated facility near the M5 in Evesham, UK. To choose the right manufacturing operation, you need to understand how fixed head turning works, where it fits best, and what affects achievable results.

Quick Answer: What Is Fixed Head Turning, and Who Is It For?

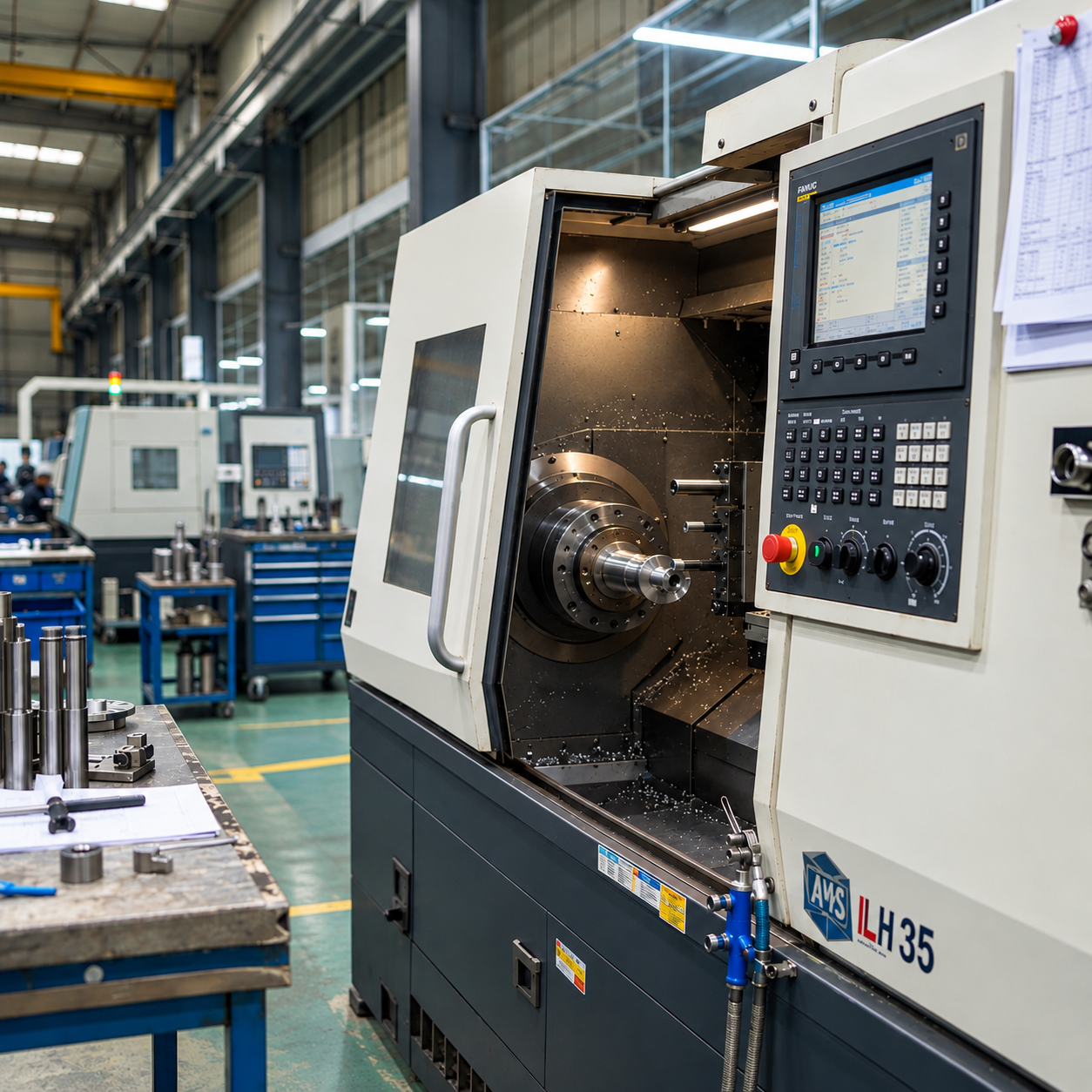

What Is Fixed Head Turning, and Who Is It For?

Fixed head turning is CNC turning in which the main spindle remains in a fixed position while the workpiece rotates and the cutting tool moves to create the required form. This setup is used to machine short workpieces, larger diameter components, and many complex parts where rigidity and stable cutting matter. It is a common choice for precision engineering because it supports efficient stock removal and good control of dimensions.


In practice, fixed head turning suits customer requirements such as low-volume prototype batches, high-volume small-turned parts, die-making consumables, bolts, fasteners, heatsinks, shafts, pins, and aerospace components. It is also useful when rough bar stock or billets are involved. If your part is relatively short for its diameter and needs several operations on one machine, fixed head machining is often the right starting point.


Key Takeaways: Fixed Head Turning in CNC Machining


Fixed head turning offers a strong balance of flexibility, control, and productivity on CNC lathes. Because the process uses numerical control, it can produce repeatable features across prototype and batch work. It is especially useful for short workpieces, parts with larger diameters, requirements, and jobs that need several machining steps completed with one setup. For many applications, this helps reduce handling and supports better turnaround times.


Another key point is that performance depends on the full process, not only the machine. Cutting tool choice, workholding, material behavior, and inspection all affect the final result. Fixed head machines are also well suited to large stock removal and a broad range of materials. At Rotec, automation and unmanned running add production efficiency, while CMM inspection supports verification for customer requirements across demanding sectors.


Defining Fixed Head Turning in CNC Precision Engineering

Fixed head turning is a CNC turning method where the headstock stays stationary and the raw material rotates in the spindle while tools machine the part. In simple terms, it is a turning process built for controlled cutting on parts that do not need sliding head support. That makes it a practical option for many high-precision components.


You will often see fixed head machining used where the part is short, comparatively rigid, or made from rough bar stock or billet. It handles a wide range of diameters and materials, which is why it remains a standard choice in precision engineering. The next sections explain the setup and the key differences from sliding head technology.


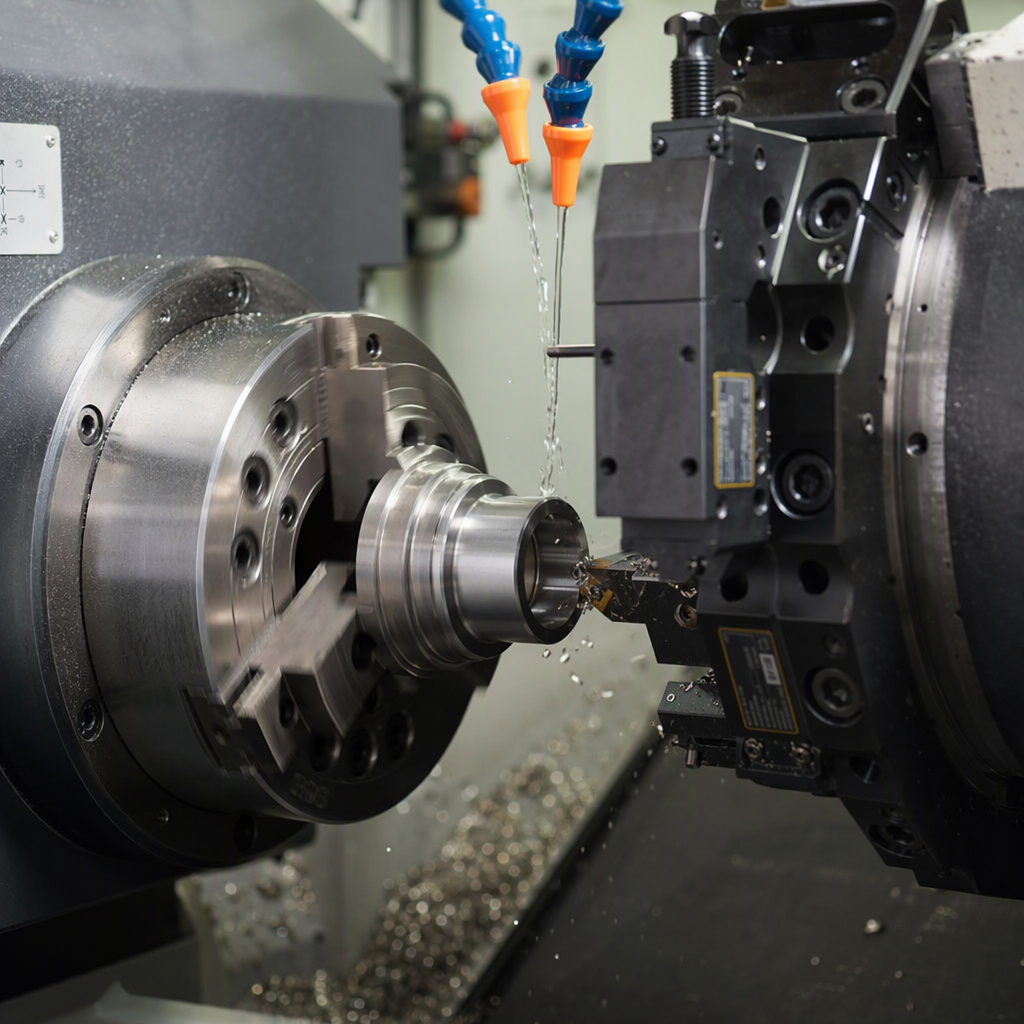

Fixed Head Turning Explained: How the Process Works

A fixed head-turning center works by holding the workpiece in the main spindle while the headstock stays in a fixed position. The spindle rotates the material, and the cutting tools move around it to remove material in a controlled way. This is how machine tools create high-precision cylindrical and prismatic features.


The basic setup process usually follows these steps:

  1. Load the bar, billet, or blank into the spindle or chuck.
  2. Secure the workpiece and confirm the datum.
  3. Fit the required tools for turning, drilling, or milling features.
  4. Run the CNC programme and check the first-off part.


Once the programme is proven, the machine can repeat the cycle with strong consistency. Live tooling and sub-spindle capability on suitable machines can add more stages in one setup, helping produce complex shapes with fewer manual interventions. That is one reason fixed head turning stays effective for both development parts and repeat orders.


Fixed Head Turning in Context: A Comparison with Sliding Head Technology

The key differences between fixed-head lathes and sliding-head machines come from how the material is supported during machining. In fixed head turning, the spindle position stays fixed, and the workpiece is machined from that held point. In sliding head machining, the headstock moves, and a guide bush supports the bar close to the cut, which helps with long, slender parts.


Here are the main distinctions:

  • Fixed head machines are better suited to short workpieces, rough bar stock, billets, and larger diameters.
  • Sliding head machines are stronger for high-precision turning of small diameters and long parts with a high length-to-diameter ratio.
  • Dimension limits differ because sliding head machines rely on guide bush support and are limited by maximum bar diameter.


As a simple rule, choose a fixed head for shorter, stiffer components and a sliding head for long, narrow ones. Machine tool companies have broadened the overlap between both technologies, but the basic selection logic still matters. Rotec offers both approaches, so the choice can be matched to actual part geometry and customer requirements.


Capabilities of Fixed Head Turning at Rotec Aerospace Limited

Rotec Aerospace Limited operates fixed-head machine tools that support both flexible production and repeat manufacturing. These CNC lathes are used for turning work across sectors such as aerospace, space and satellite, Formula 1, military, oil and gas, automotive, agricultural, industrial, and rail. This makes fixed head capacity an important part of Rotec’s one-stop shop offering in Evesham, UK.


Just as important, the facility runs 24/5, and many machines operate unmanned. That level of automation supports efficient throughput, especially for repeat work and high-volume small-turned parts. The next two sections cover the machine platforms, automation features, and the range of supported operations in more detail.


Machine Types and Automation Features

Rotec’s fixed-head CNC lathes include a strong mix of machine tools for different production needs. The installed machines are

  • DMG MORI NLX 2500 / 700 (x2)
  • Nakamura AS200 with Halter robot loading cell
  • Nakamura NTRX300 with Halter robot loading cell (x2)
  • Nakamura NTY-3 (x2)


These platforms support both standalone turning and more advanced mill/turn work. Robot loading on the Nakamura AS200 and Nakamura NTRX300 systems adds automation for repeat batches and helps keep utilization high. In a 24/5 facility, that matters for productivity, consistency, and safe collection of the finished CNC parts where automated handling is planned.


If you want to optimize production with fixed-head machines, the practical route is to match the machine to the part, reduce unnecessary setups, and use automation where batch size supports it. Rotec’s customer-focused model also adds CAD/CAM, rapid prototyping, assembly, and stock holding, which helps link machining to the wider manufacturing flow.


Supported Operations and Live Tooling Possibilities

Fixed head turning can do far more than simple outside diameter work. With live tooling and mill/turn capability, one machine can complete different operations during the same turning process. That reduces part handling and can improve repeatability when features need close positional control.


At Rotec, supported operations include:

  • turning, boring, grooving, drilling, and screw-cutting
  • milling and cross drilling
  • gear cutting and hobbing where the component requires it


This range means fixed-head machines are suitable for complex shapes as well as standard rotational parts. Typical examples include shafts, pins, bolts, fasteners, heatsinks, die-making consumables, and aerospace components. If your part needs several features machined from solid with stable workholding, fixed head machining is often the better fit than trying to split the job into separate second operation stages.


Achievable Tolerances in CNC Fixed Head Turning

Tolerances in CNC fixed head turning describe how closely the finished part matches the expected dimensions on the drawing. In general terms, CNC turning can achieve tight tolerances and high precision when the process is stable, the machine is suitable, and inspection is built in. The exact result always depends on the part, material, and setup.


A common challenge with fixed-head CNC lathes appears when the maximum length of the part becomes too great relative to its diameter. At that point, deflection, chatter, and vibration at the far end can affect cutting parameters and accuracy. For Rotec-specific figures, use this placeholder.


Factors That Influence Tolerance and Accuracy in Turned Parts

Several factors influence whether turned parts meet tight tolerances. Machine rigidity, thermal stability, tooling condition, and secure workholding all play a direct role in high-precision machining. The complexity of the part also matters because extra features, longer unsupported sections, and deeper cuts can increase risk.


The main process influences include:

  • machine rigidity, spindle condition, and thermal control
  • tool choice, tool wear, and tool life across the batch
  • material type, geometry, workholding method, and cutting strategy


Material choice changes the behavior of the cut as well. Fixed head turning can be used with carbon steel, mild steel, copper, brass, and aluminum, among other suitable materials from a broad range of materials. In-process checks and final CMM inspection are then used to confirm the part against specification. Where company-specific performance data is required, the correct placeholder remains [INSERT ROTEC TOLERANCE FIGURES HERE].


Mapping Best Use Cases: Applications, Parts, and Industries for Fixed Head Turning

Fixed head turning is best suited to short workpieces, larger diameters, and parts that benefit from stable machining and efficient stock removal. It is often the best choice when the component is too short to need guide bush support or when rough bar stock and billet machining are required. That is why it remains common across many industry sectors.


Compared with a sliding head, a fixed head is less suitable for very long, slender components often linked with medical manufacturing and similar applications. Instead, it fits general parts, structural features, and turned components used in aerospace, automotive, oil and gas, rail, and other production environments. The table below maps the common use cases more clearly.


Typical Components and Industry Applications (with Table)

The parts best suited for fixed head turning are usually rigid, relatively short, and practical to machine from bar or billet. They often include features added by turning, milling, drilling, or screw-cutting in one cycle. This makes the process useful across a broad range of materials and production volumes.


Use case Typical components Industries served
High-volume small turned parts pins, shafts, fasteners, bolts automotive, industrial, rail, agricultural
Prototype and low-volume work aerospace components, development parts aerospace, space and satellite, motorsport
Die making consumables stripper and support pins, dies, punches tooling and die-making supply chains
Larger diameter short workpieces cuffs, axles, large pipe connectors oil and gas, automotive, industrial
Functional multi-feature parts heatsinks, hydraulic components, gear-cut parts industrial, military, and general engineering

Medical manufacturing often leans towards sliding head for long, narrow parts, so it is better treated as a contrast case than a core fixed head application here. For Rotec, the strongest fit is with sectors already served from Evesham, UK, using fixed head capability as part of a wider machining service.


Conclusion

In conclusion, fixed head turning is a highly efficient method for producing precision components across various industries, notably the aerospace and automotive sectors. This process excels in creating high-volume small-turned parts and low-volume prototypes, catering to a wide array of applications. With advanced machinery and automation at Rotec Aerospace Limited, we ensure high-quality outputs while meeting stringent tolerances. For a comprehensive quote tailored to your project needs, please send your drawings or CAD files to Sales@rotec-ltd.com or call us at 01386 424111. We look forward to collaborating with you on your precision engineering projects.


Frequently Asked Questions


What is fixed head turning in CNC machining?

Fixed head turning is a turning process on CNC lathes where the main spindle stays in a fixed position while the workpiece rotates and the tools cut it. It is widely used for high-precision parts, especially short components, larger-diameter work, and jobs needing stable machining conditions.


How do I choose between fixed-head and sliding-head CNC for a new project?

Choose a fixed head when the part is short, relatively rigid, or larger in diameter, and choose a sliding head for long, slender parts needing guide bush support. The key differences between these head lathes come from workpiece support, maximum bar diameter, and the practical limits of each type of CNC turning.


How to align headstock to ways on 10F?

Headstock alignment on specific CNC lathes, such as a 10F, depends on the machine builder’s method and service data. As a general rule, alignment should follow the OEM procedure for that headstock and those machine tools, because errors can affect linear rails, geometry, and the expected dimensions of finished parts.


Has anything crazy happened to you this past month?

A better way to frame this for a manufacturing buyer is to ask about unusual production challenges. In precision machining, fast changes in customer requirements, urgent turnaround times, and the need for unique tooling fixtures are common. Rotec plans around those pressures with automated CNC lathes and flexible production capacity.


What is the headstock of a CNC lathe?

The headstock of a CNC lathe is the assembly that houses the main spindle and the drive system. On CNC lathes, it is the part of the machine tools that holds and rotates the raw material
